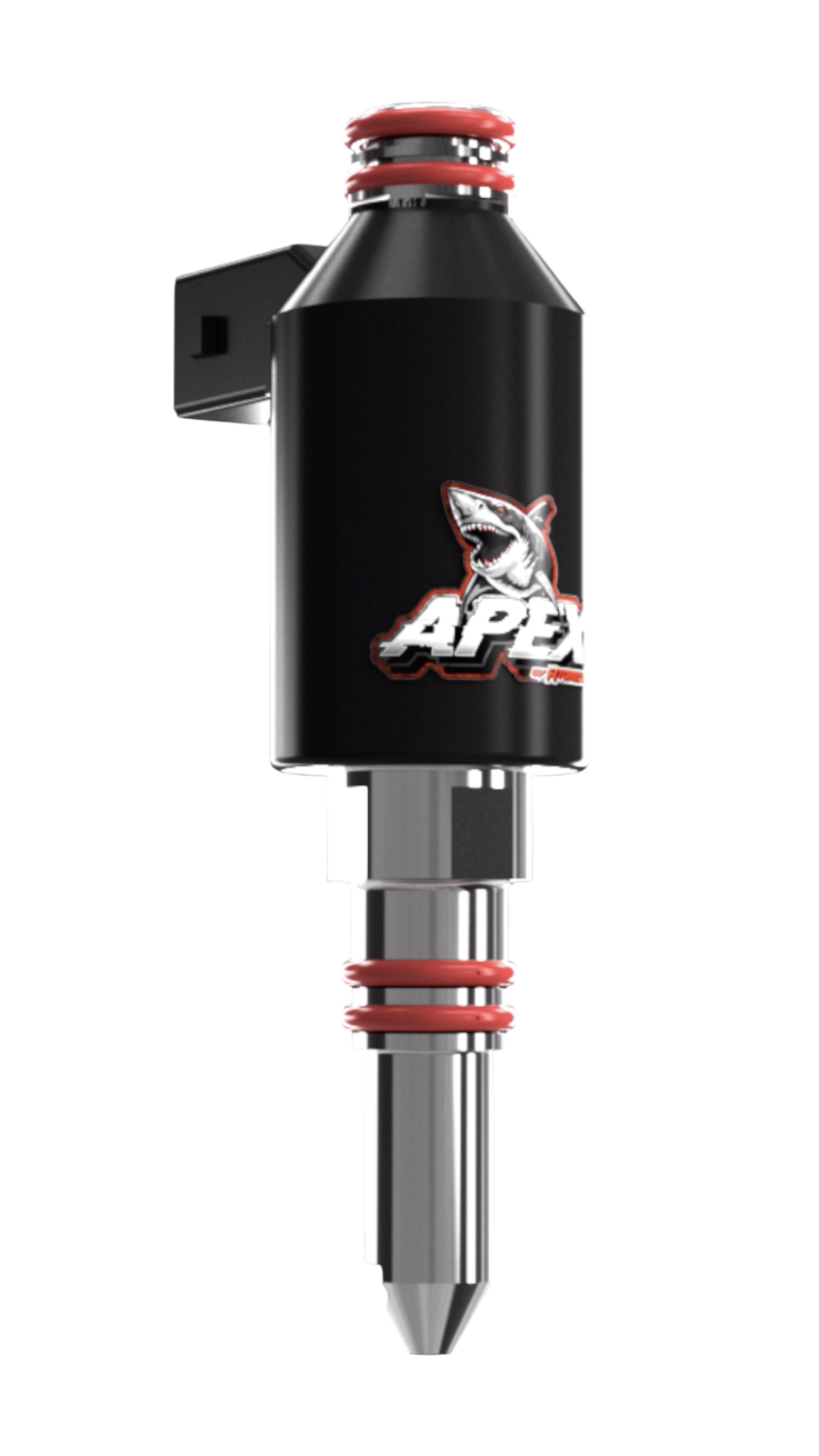

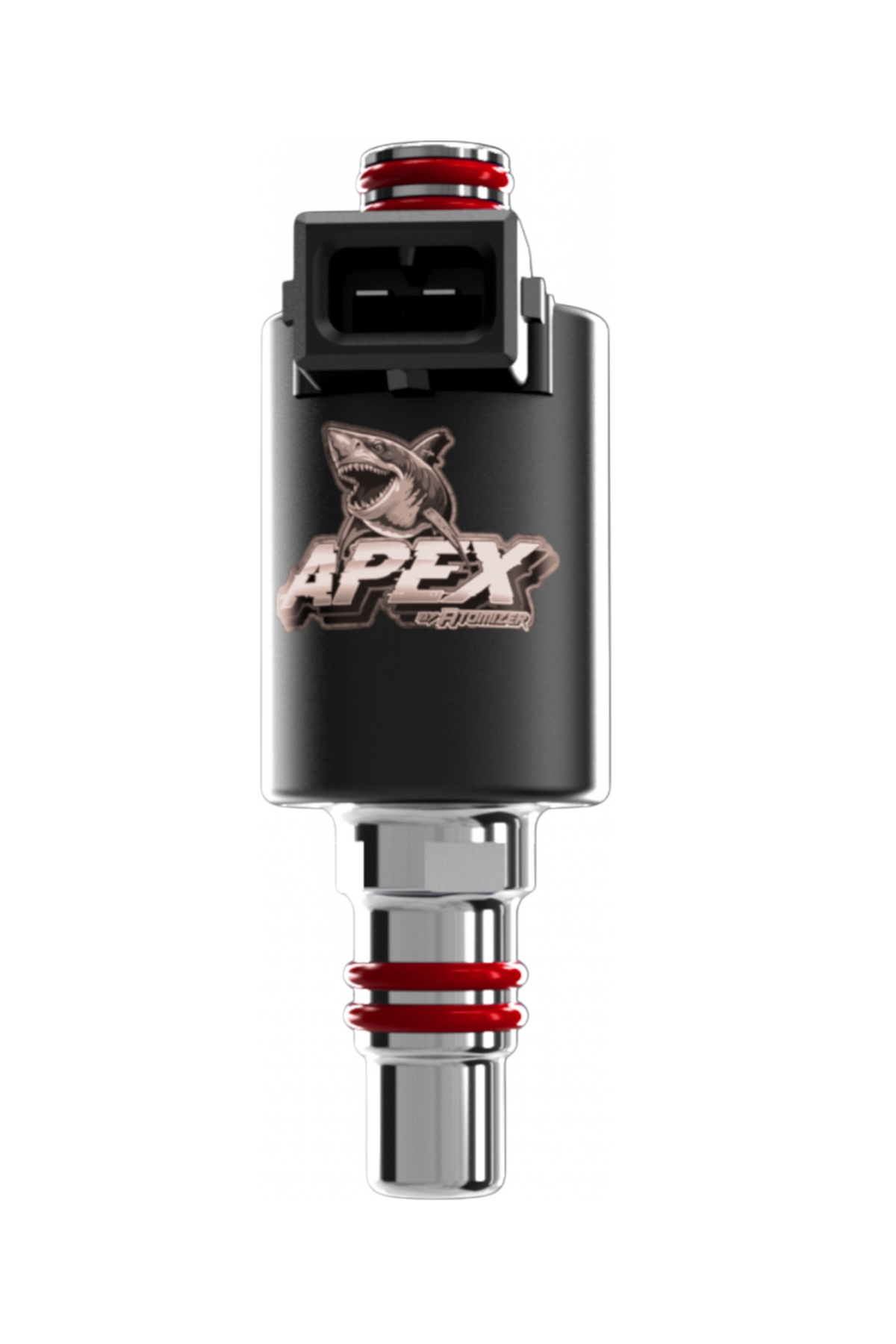

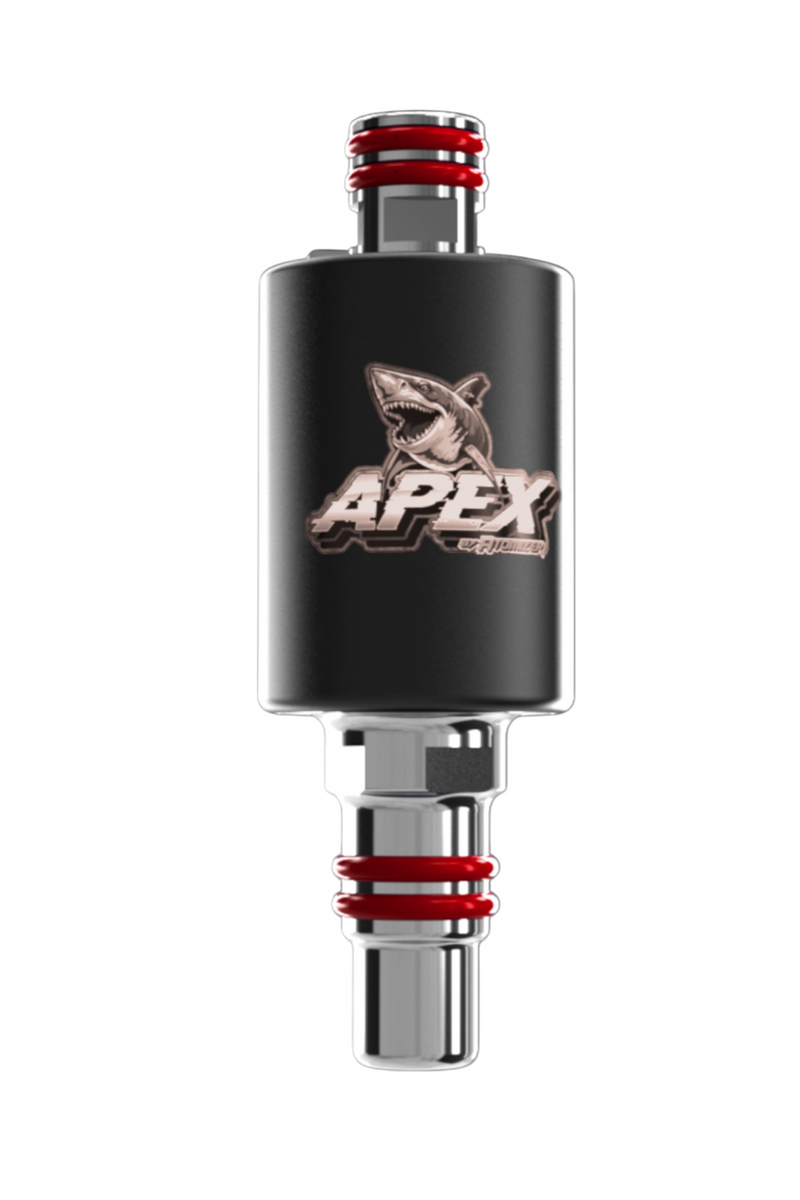

APEX Hybrid 60° Spray Injector

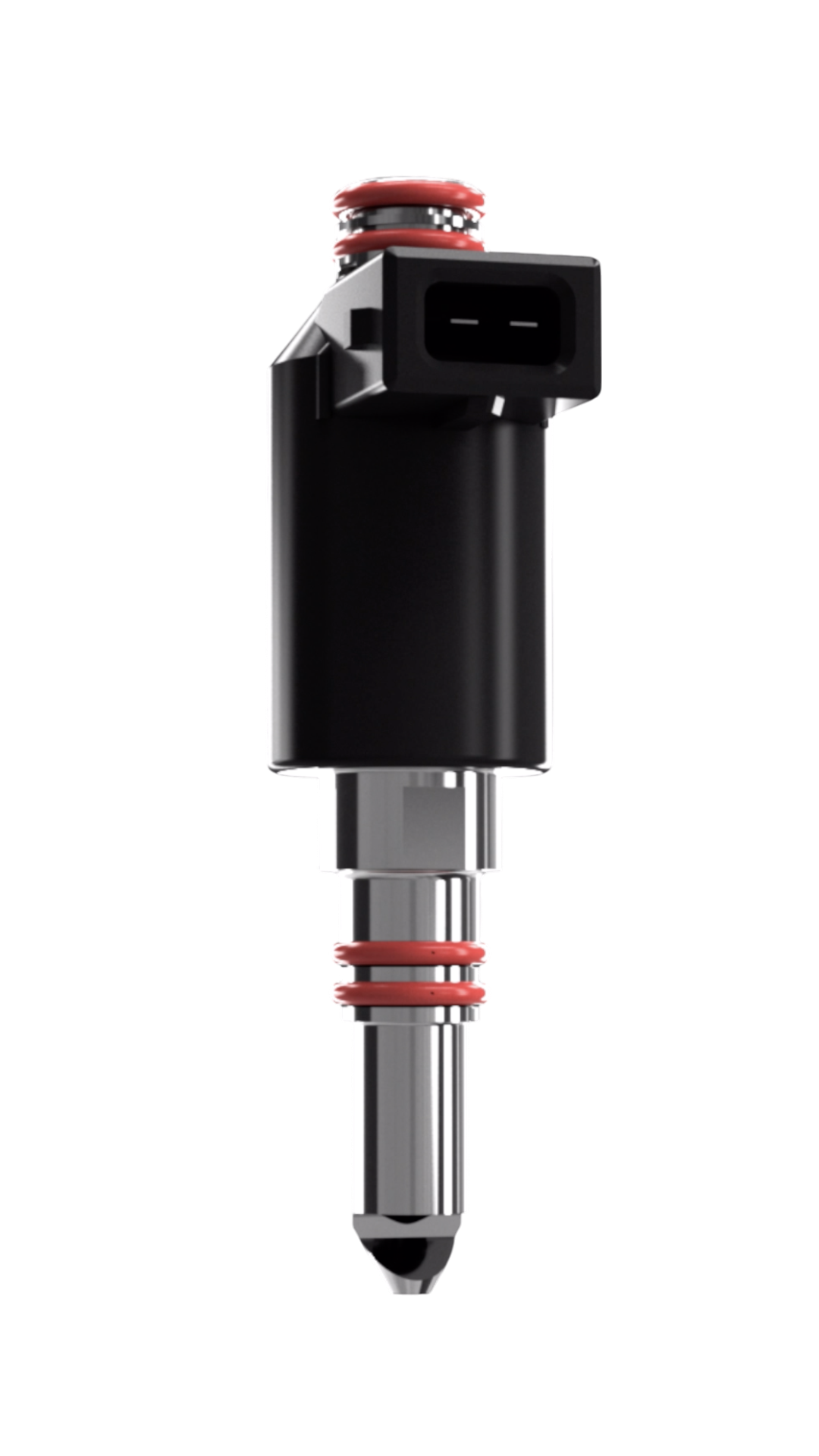

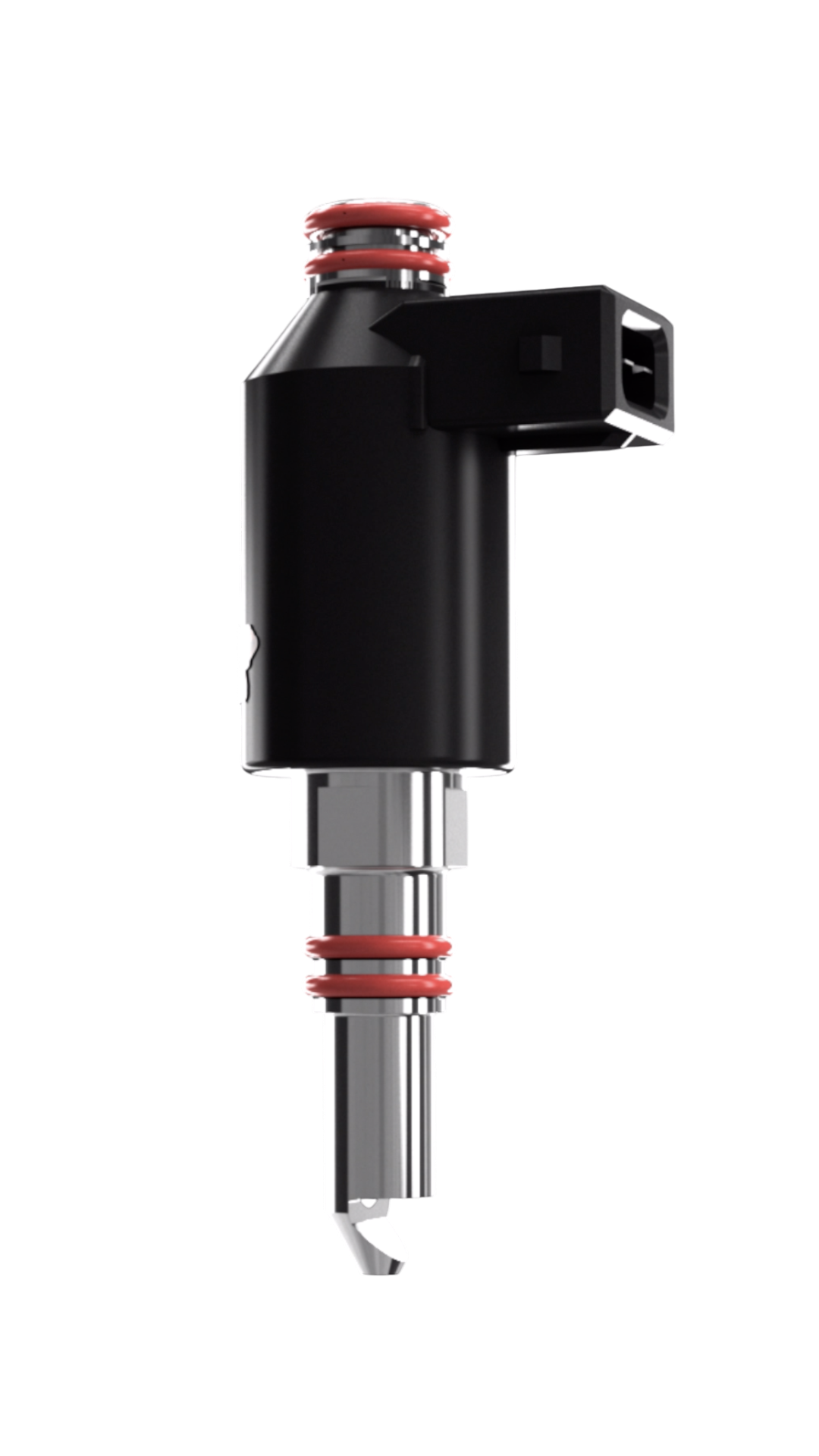

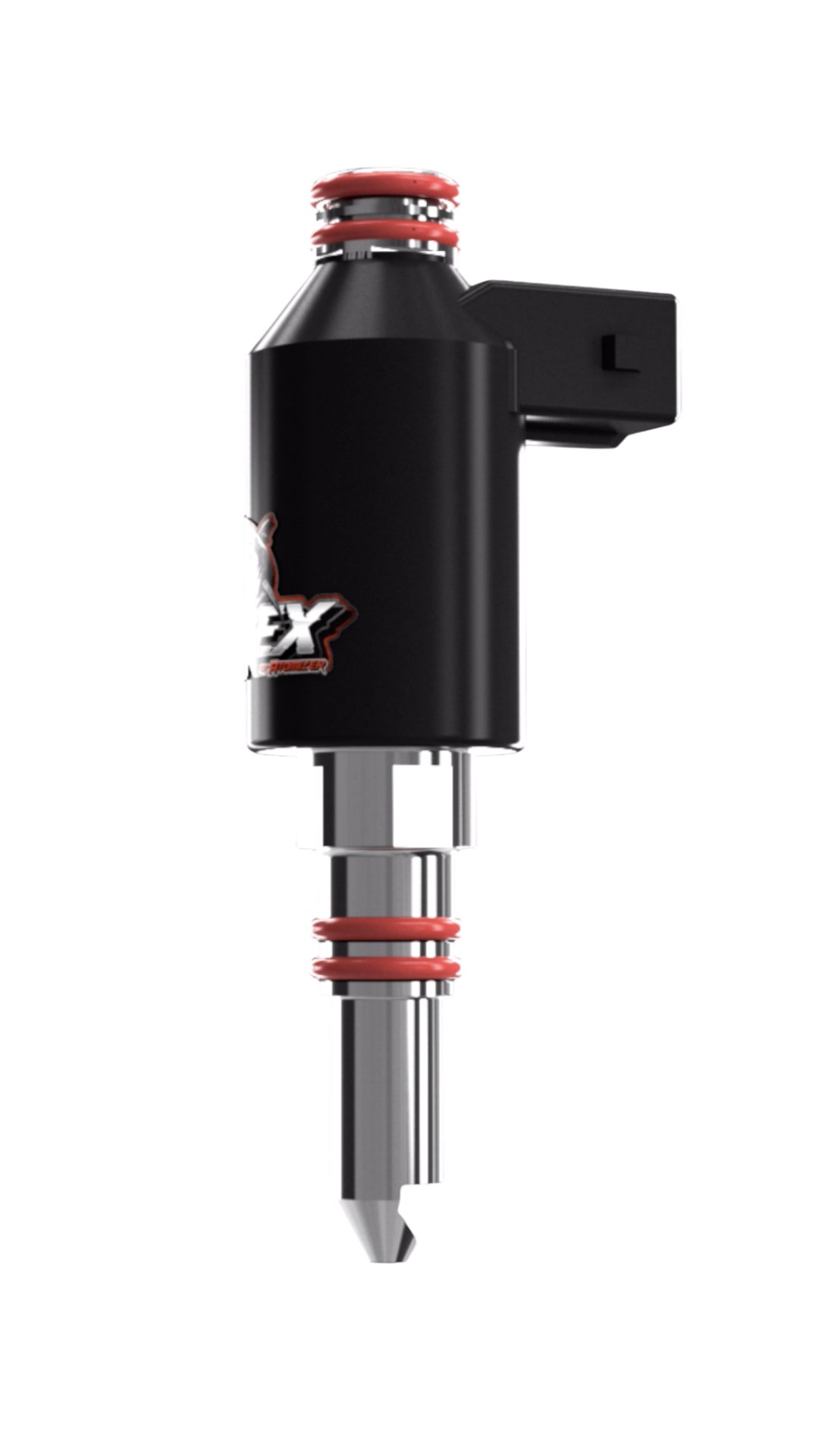

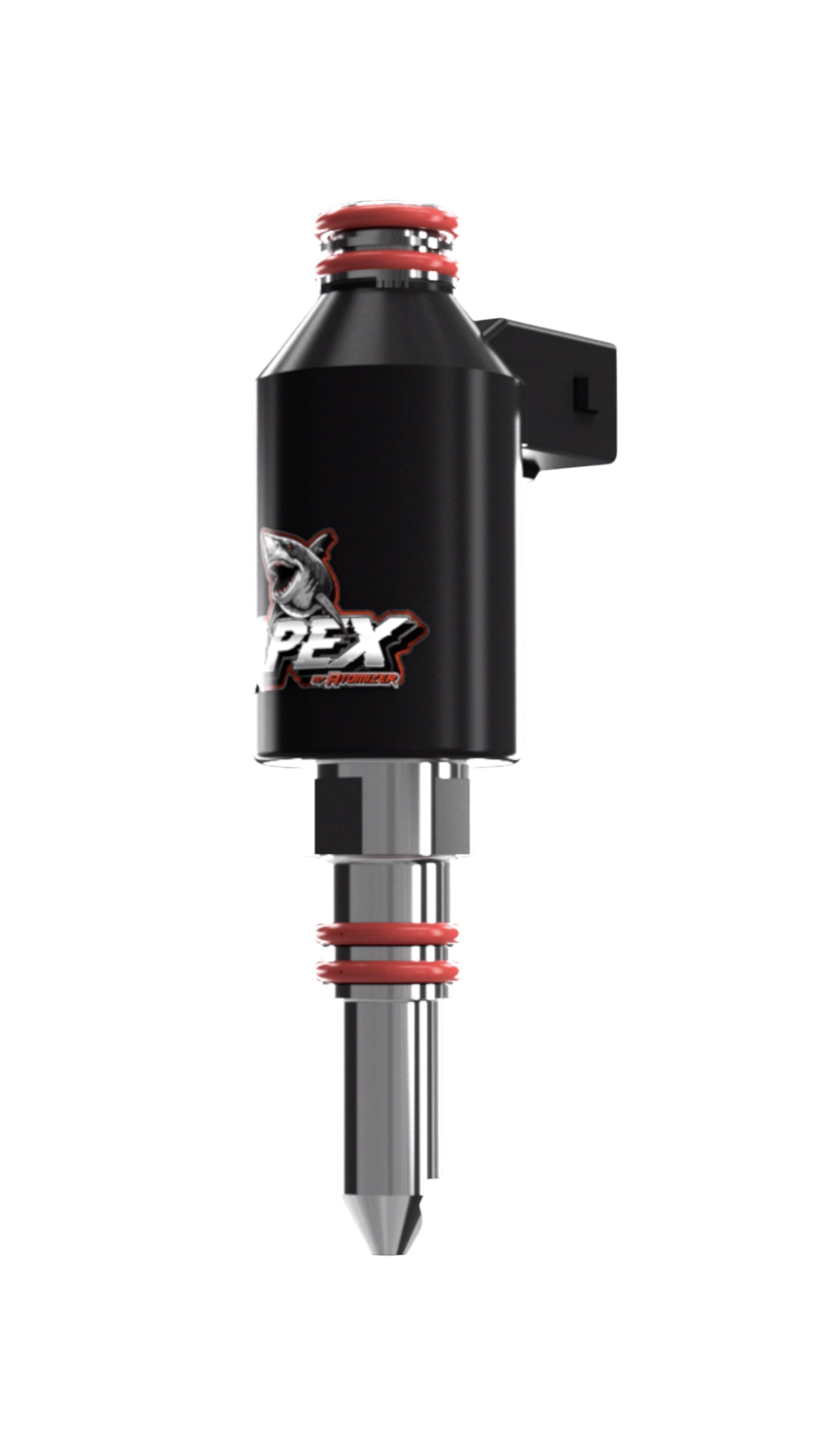

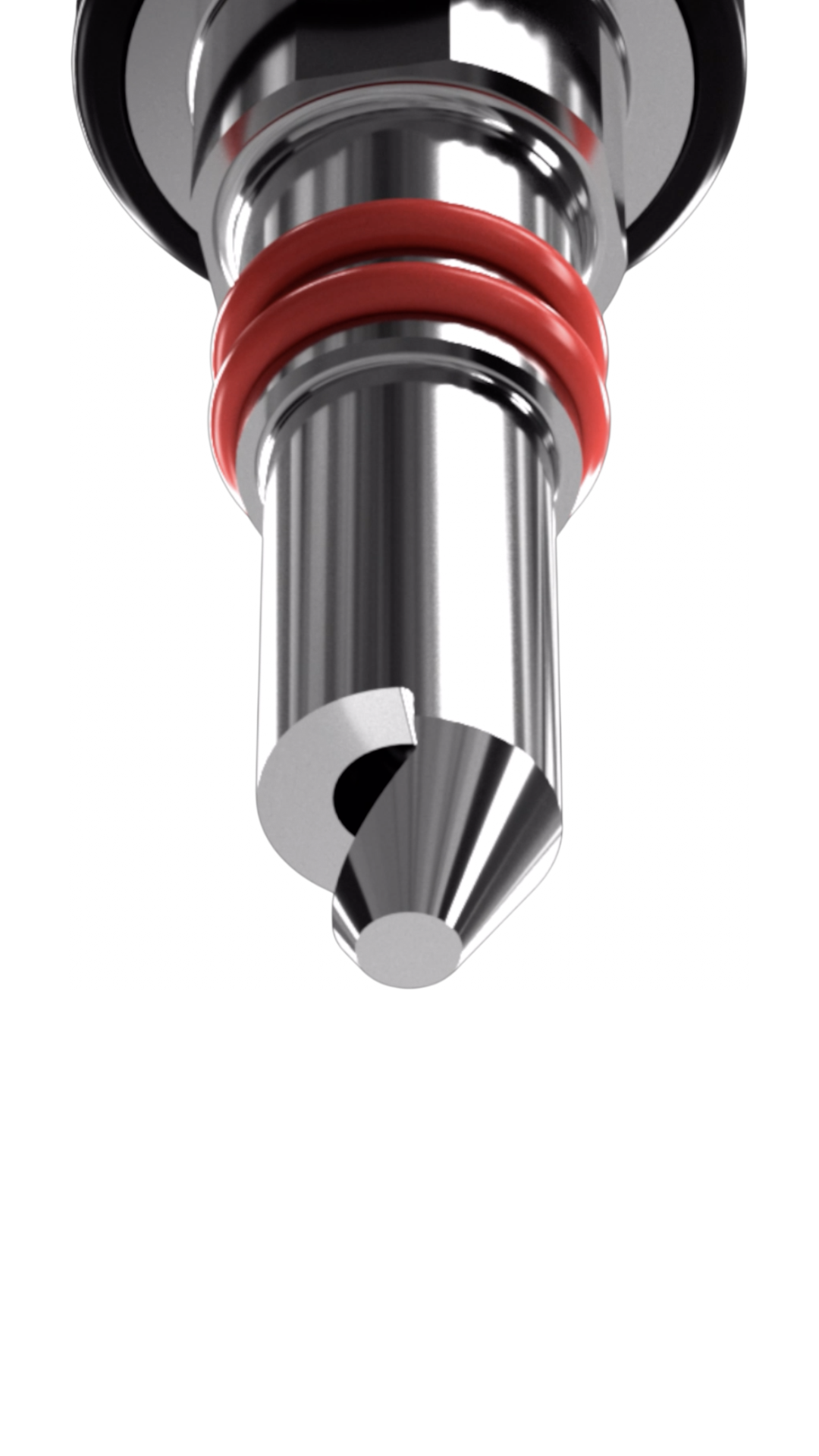

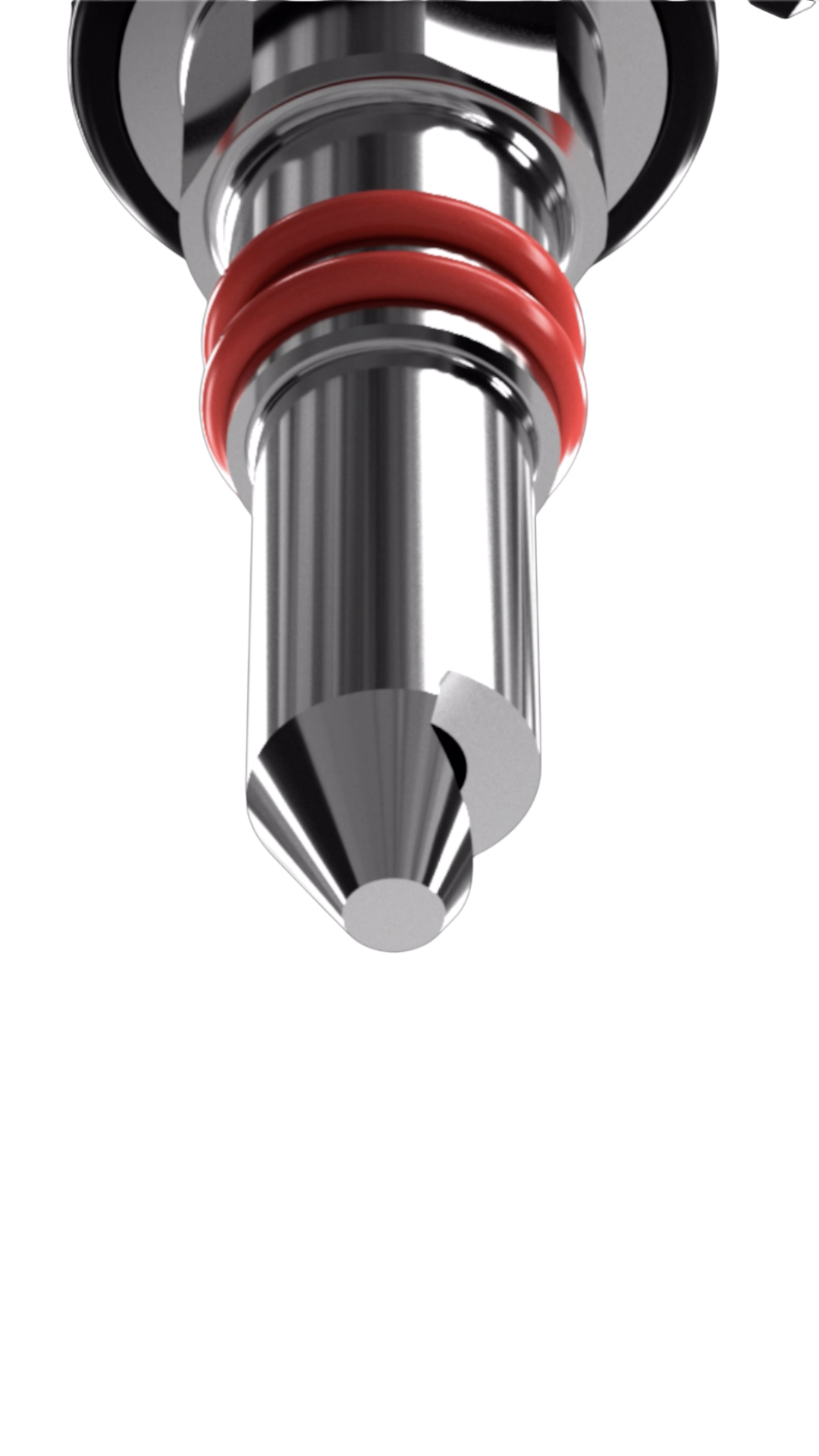

The Atomizer APEX Hybrid 60° Spray Injector is engineered to solve one of the most common limitations in electronic fuel injection—loss of directional fuel targeting. By integrating a true 60° spray pattern into a high-performance EFI injector, Atomizer delivers valve-focused fuel delivery traditionally only achievable with mechanical systems.

This hybrid design directs fuel precisely at the intake valve, improving atomization, combustion efficiency, and cylinder-to-cylinder consistency under high-load conditions. The result is faster burn rates, improved throttle response, and more stable power delivery across the RPM range.

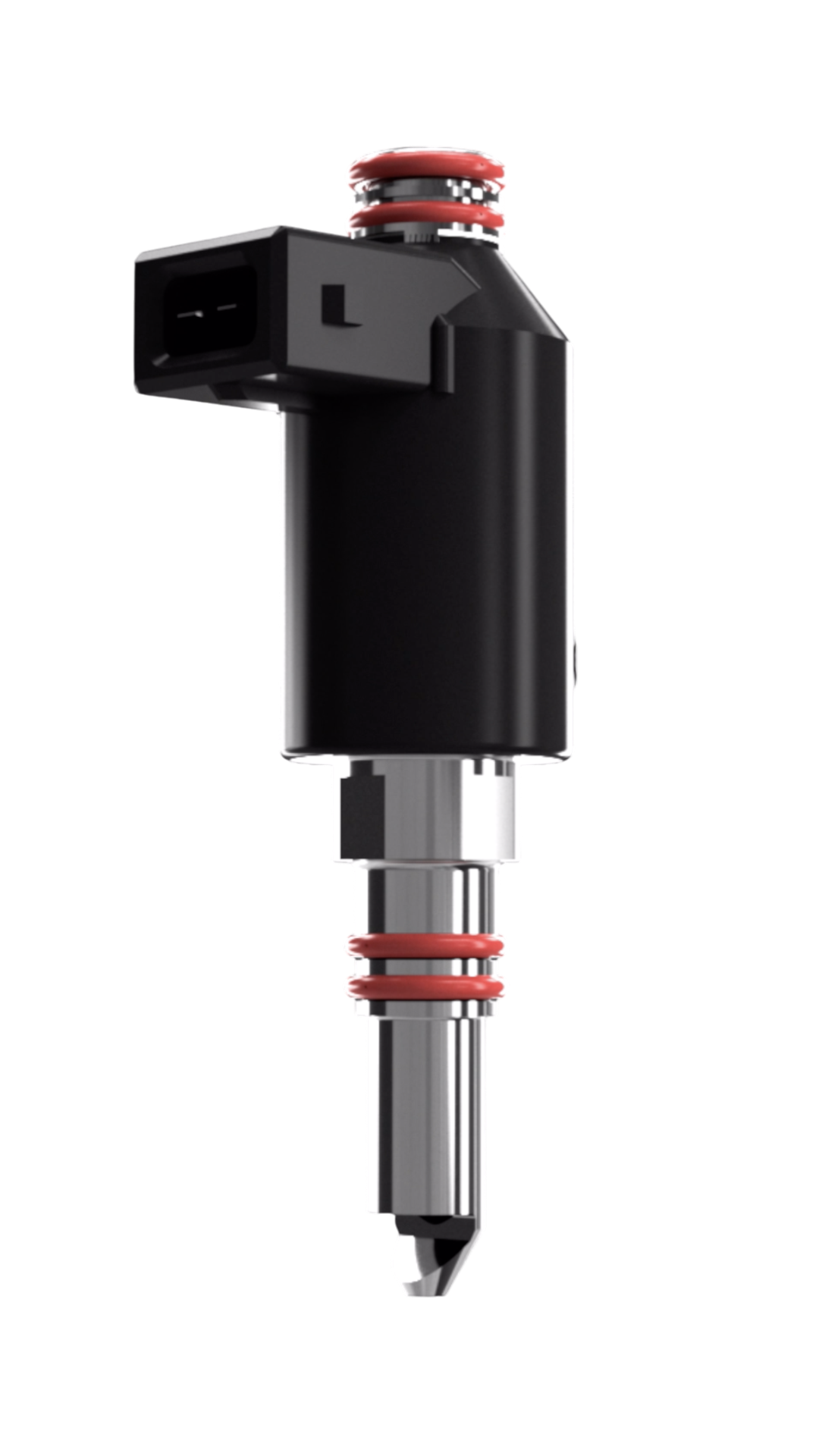

Built on the APEX platform, this injector is designed for extreme horsepower applications utilizing methanol or nitromethane fuels. The enlarged 28 mm body houses an expanded electromagnetic coil and oversized pintle, increasing magnetic force and reducing latency. This allows for faster injector actuation and more accurate fuel metering at both low pulsewidths and high duty cycles.

Each injector is statically and dynamically calibrated to ensure linear fuel delivery across varying pressures and operating conditions. This level of calibration ensures predictable tuning and repeatable performance from idle through wide-open throttle.

Specifications and Features

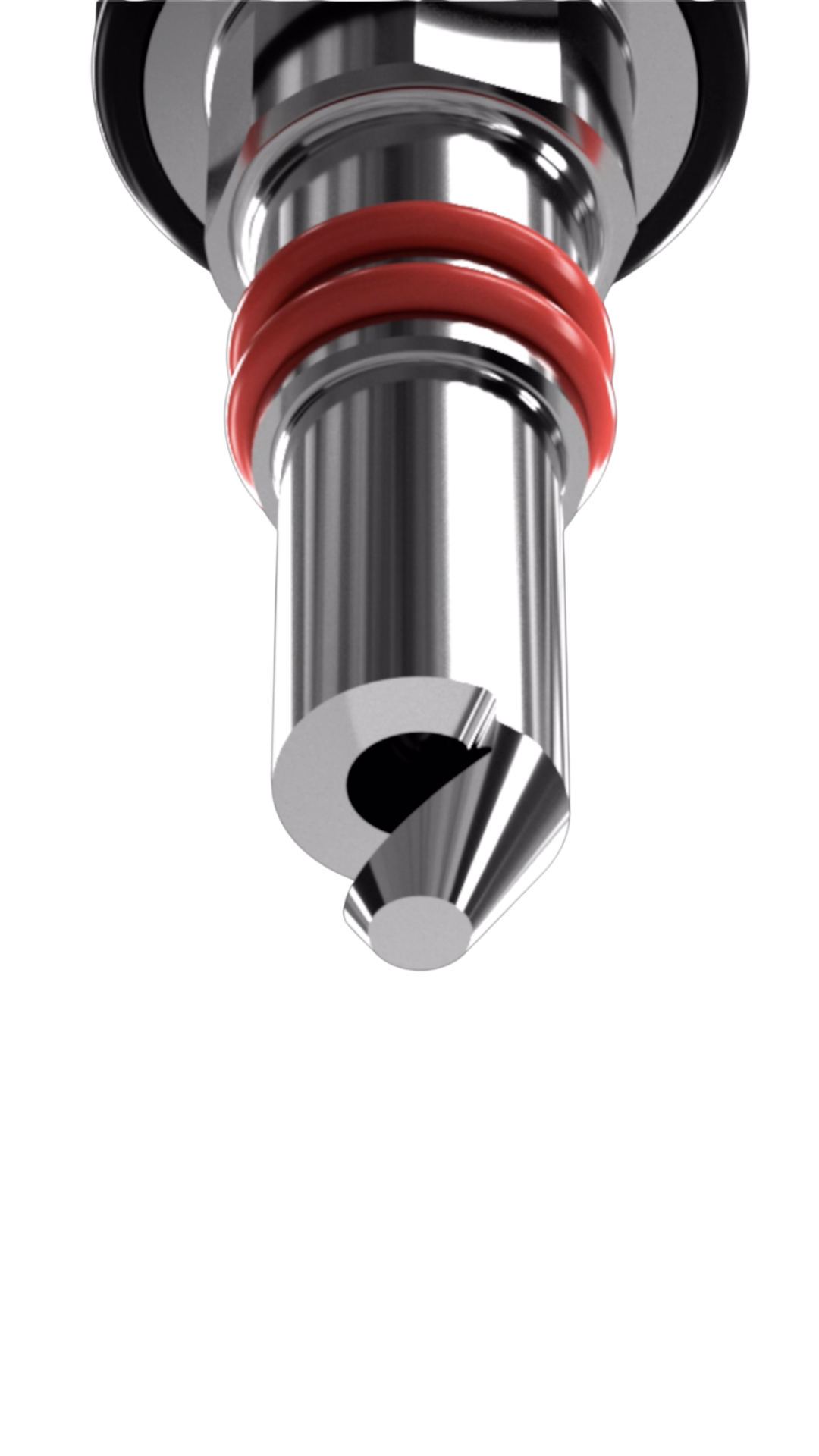

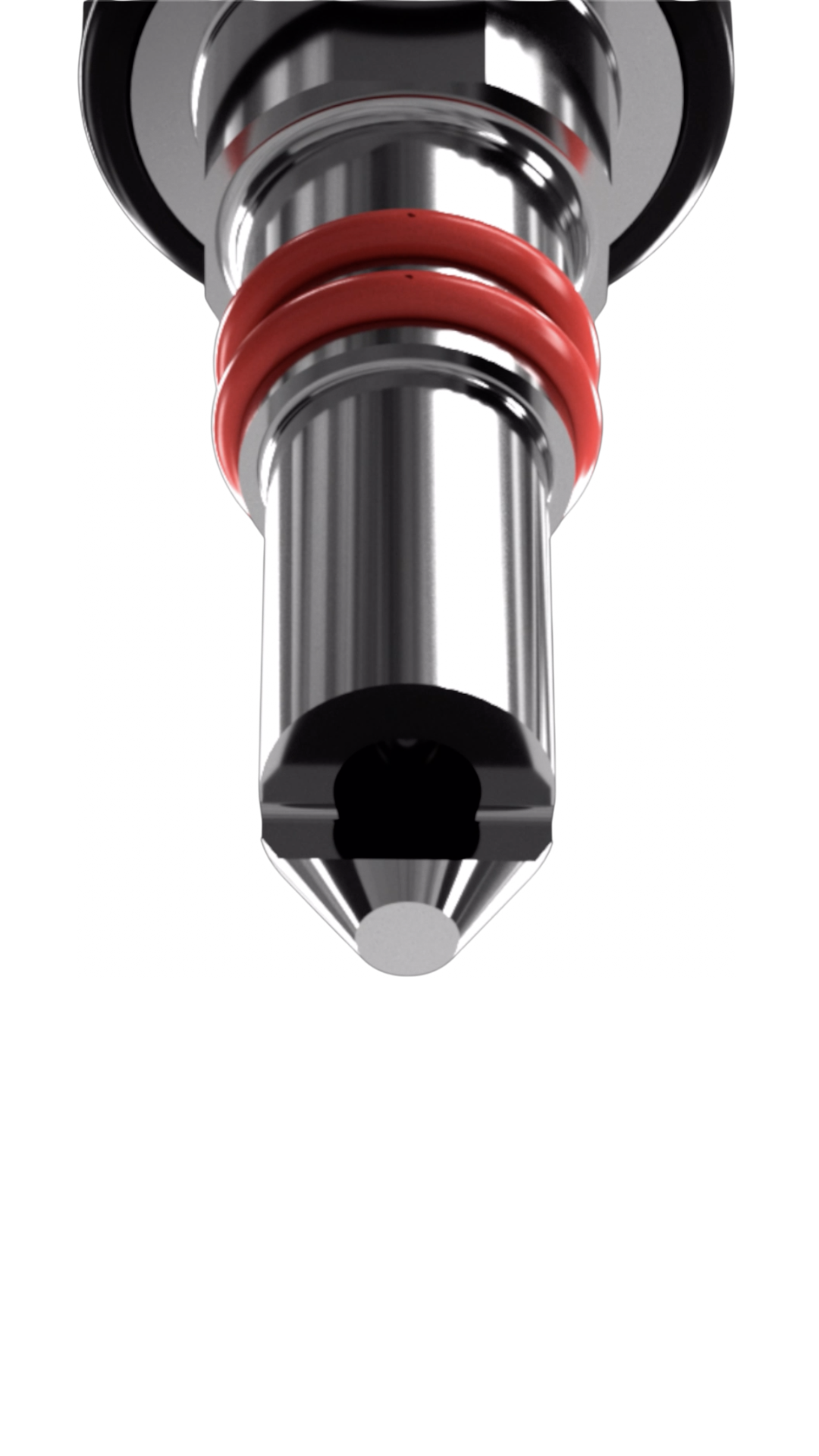

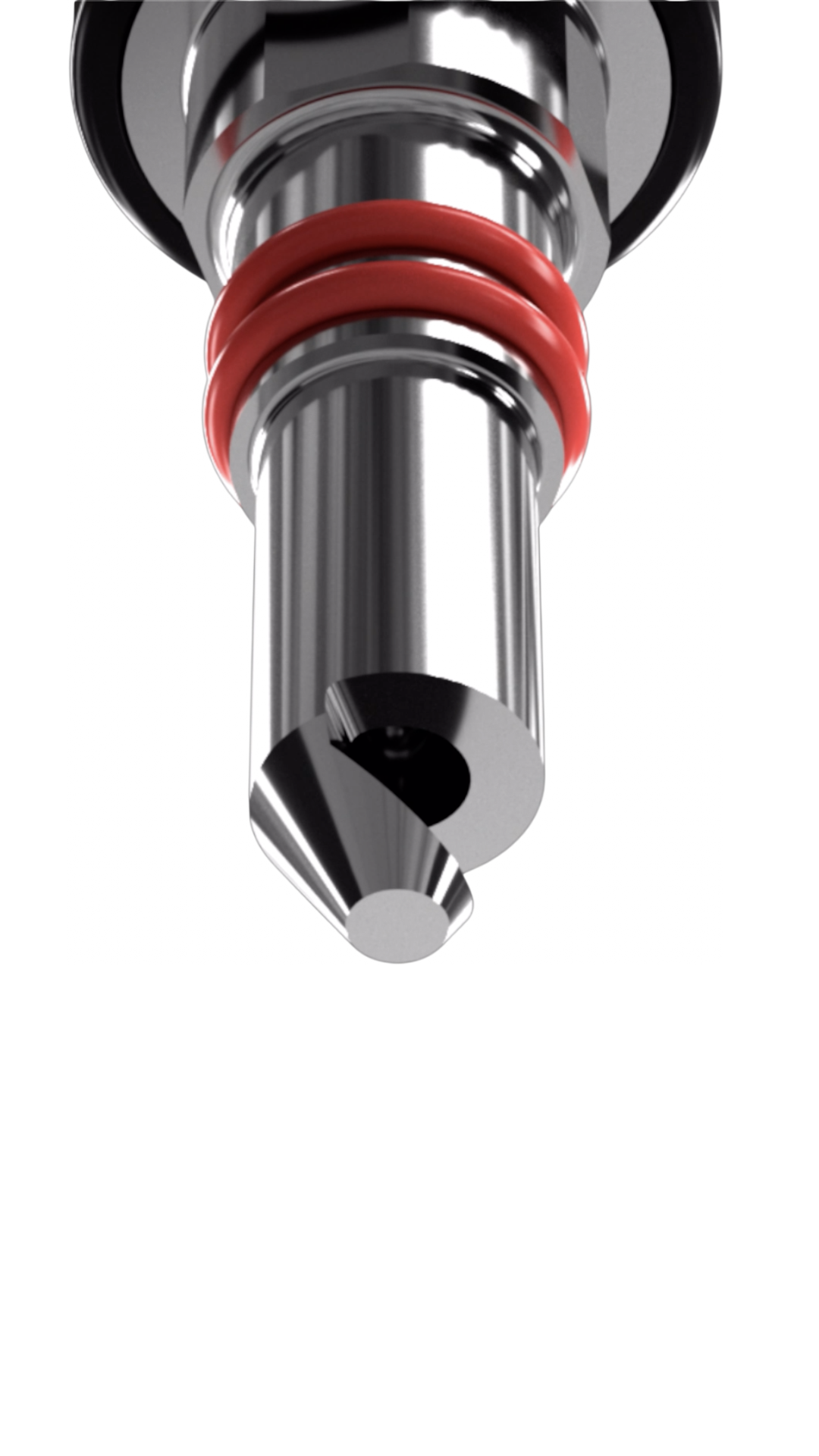

• True 60° directional spray angle for targeted valve injection

• Flow rates available from 725 to 1,225 PPH (example ≈7,612 cc/min at 725 PPH)

• High-flow capability for methanol and nitromethane applications

• 28 mm injector body with increased internal volume

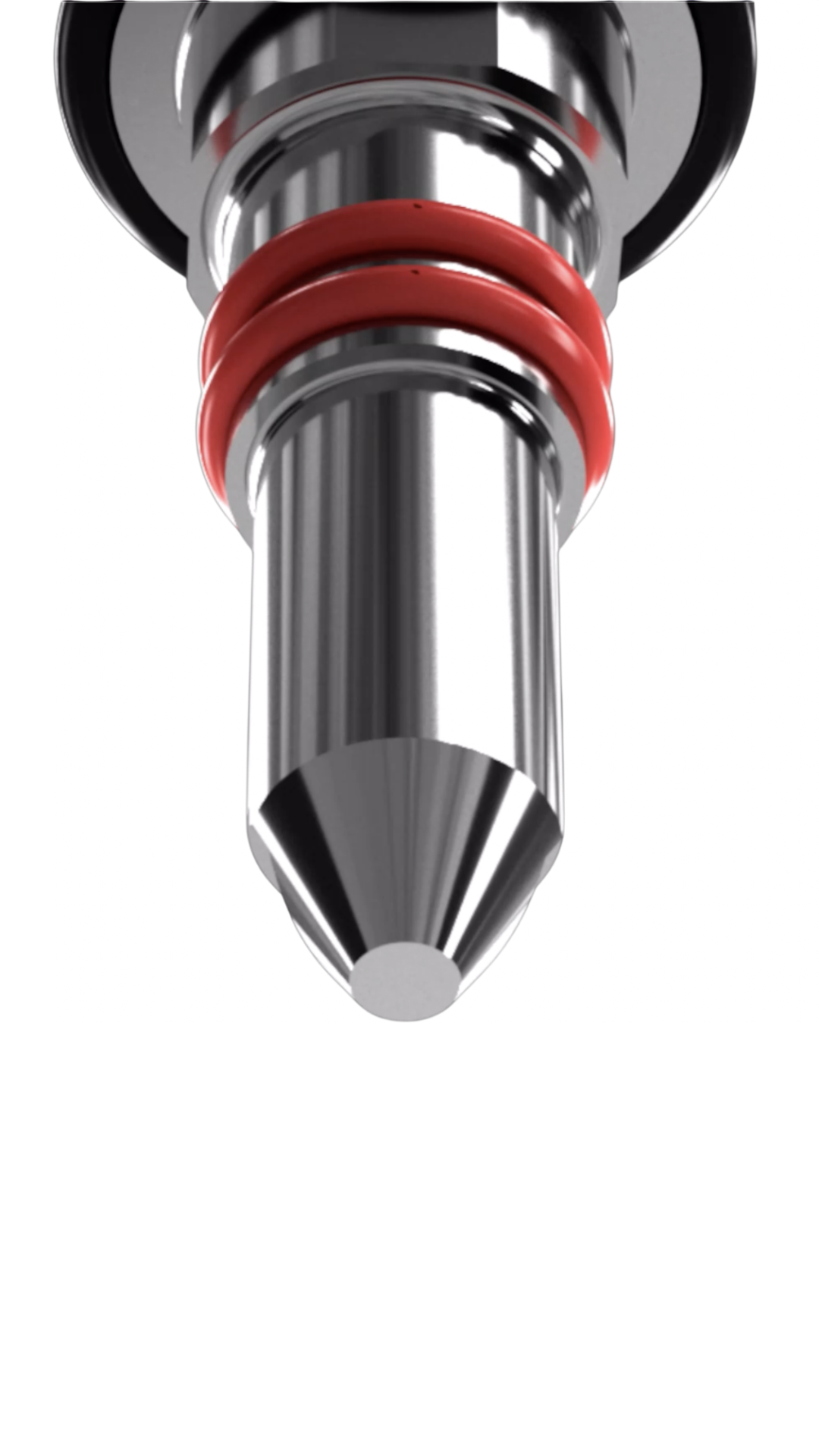

• Expanded coil and oversized pintle for higher magnetic force and faster response time

• Industry-leading actuation speed for improved pulsewidth control

• Dual calibration process (static and dynamic) for precise fuel delivery

• Patented 100% rebuildable architecture for extended service life

• Viton O-ring sealing (14 mm / .551”) with included alternate sizes


• Manufactured entirely in the USA from military-spec materials



Performance Characteristics

The Hybrid 60° design improves fuel targeting at the intake valve, reducing wall wetting and increasing effective atomization. This results in more efficient combustion, especially in high-boost and high-cylinder-pressure environments. Improved fuel control at low pulsewidths also enhances idle stability in large injector configurations.

Applications

• Pro Mod, radial, and outlaw drag racing platforms

• High-boost forced induction combinations

• Nitrous-assisted engines

• Methanol and nitromethane fuel systems

• Large displacement and high-cylinder-pressure engines



Atomizer’s patented rebuildable design allows complete disassembly and servicing, eliminating the need for injector replacement and reducing long-term operating costs in competitive environments.

Made in the USA | Military‑Spec | Patented Rebuildable Design
